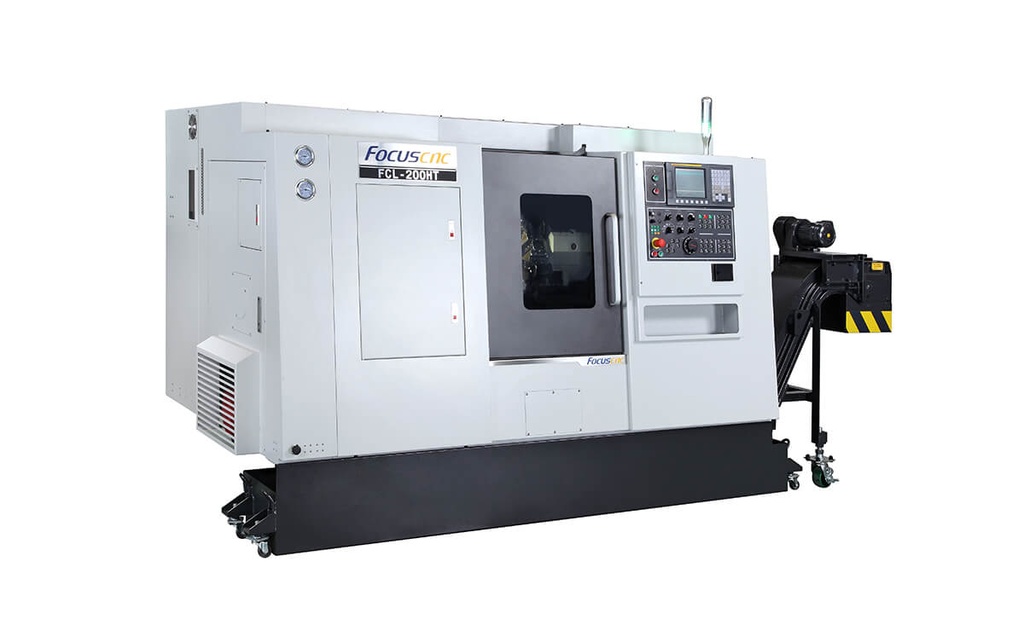

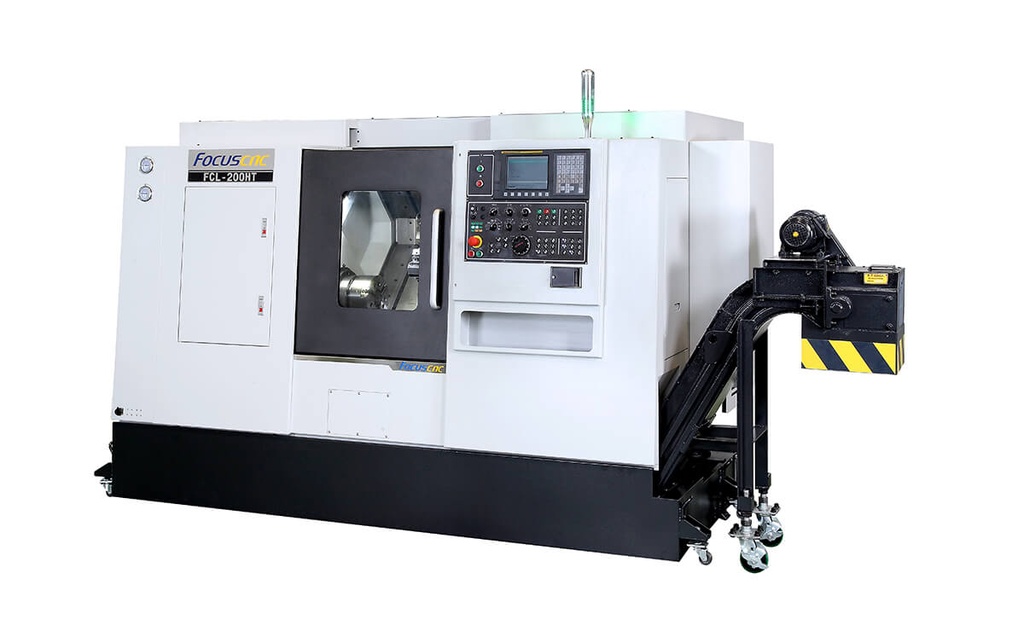

FCL-200/ HT/ MC
Linear Way CNC Lathe
The spindle is equipped with Ø100mm high precision angular ball bearings and sturdy sleeve for precision machining.
FCL-200MC Linear Way Spindle CNC Machine: C axis indexing system
Equipped with CS servo motor and high resolution C axis sensor to process high accuracy indexing.
FCL-200MC Linear Way Spindle CNC Machine: live tooling system
Supply the fastest servo turret features 3-piece coupling gears, fast hydraulic locking and tool-to-tool change 0.2 second. It brings you the high production efficiency by the integration of the turning and live tooling.
| Specifications |
FCL-200 | FCL-200HT | FCL-200MC | |
| Capability | ||||
| Swing over bed | mm | 470 | 470 | 470 |
| Max. cutting diameter | mm | 292 | 300 | 196 |
| Max. cutting length | mm | 500 | 479 | 444 |
| Max. bar material diameter | mm | 52 | 52 | 52 |
| Spindle | ||||
| Spindel speed | rpm | 4500 | 4500 | 4500 |
| Spindle nose | ASA | A2-6 | A2-6 | A2-6 |
| Chuck size | inch | 8 | 8 | 8
|
| Spindle motor | kW | 7.5/11 | 11/15 | 11/15
|
| Turret | ||||
| Number of tools |
| 10 (12) | 10 (12) | 12 |
| Turning tool size | mm | 20x20 | 25x25 | 20x20
|
| Boring tool size | mm | 32 | 40 | 32 |
| Travel | ||||
| X axis travel | mm | 176 | 176 | 161 |
|
Z axis travel
| mm | 520 | 520 | 520 |
