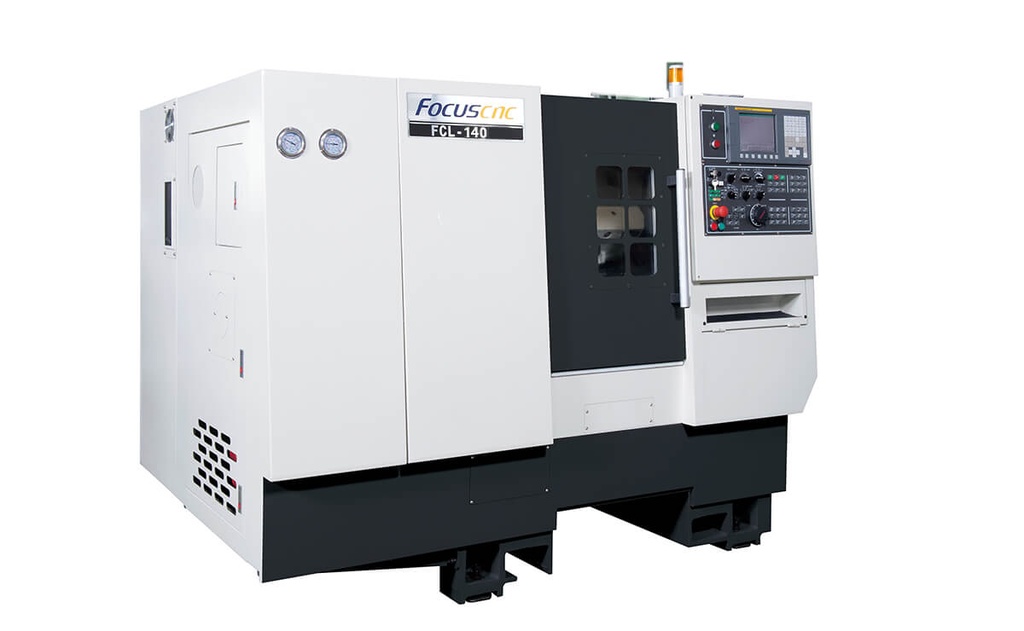

FCL-140/ A
Linear Way CNC Lathe
The High Speed/High Precision CNC Machine equips with 10 tool-stations cam type hydraulic turret that can be indexing with 0.3 second tool change and repeatability 0.002mm.
Chip removal outlet is available for rear or side direction. Coolant tank can be pulled out from the front of the machine to compact the footprint.
Optional gang type tool holder features efficiency and added value.
| Specifications |
FCL-140A | FCL-140 |
|
| Capability
|
|||
| Swing over bed | mm | 470 | 470 |
| Max. cutting diameter | mm | 280 | 260 |
| Max. cutting length | mm | 290 | 290 |
| Max. bar material diameter | mm | 45 | 45 |
| Spindle | |||
| Spindel speed | rpm | 6000 | 6000 |
| Spindle nose |
ASA |
A2-5 | A2-5 |
| Chuck size | inch | 6 | 6 |
| Spindle motor | kW |
7.5/11 | 7.5/11 |
| Turret | |||
| Number of tools | 5 | 10 |
|
| Turning tool size | mm | 20x20 | 20x20 |
| Boring tool size | mm | 32 | 32 |
| Travel | |||
| X axis travel | mm | 320 | 150 |
|
Z axis travel
|
mm | 320 | 320 |
