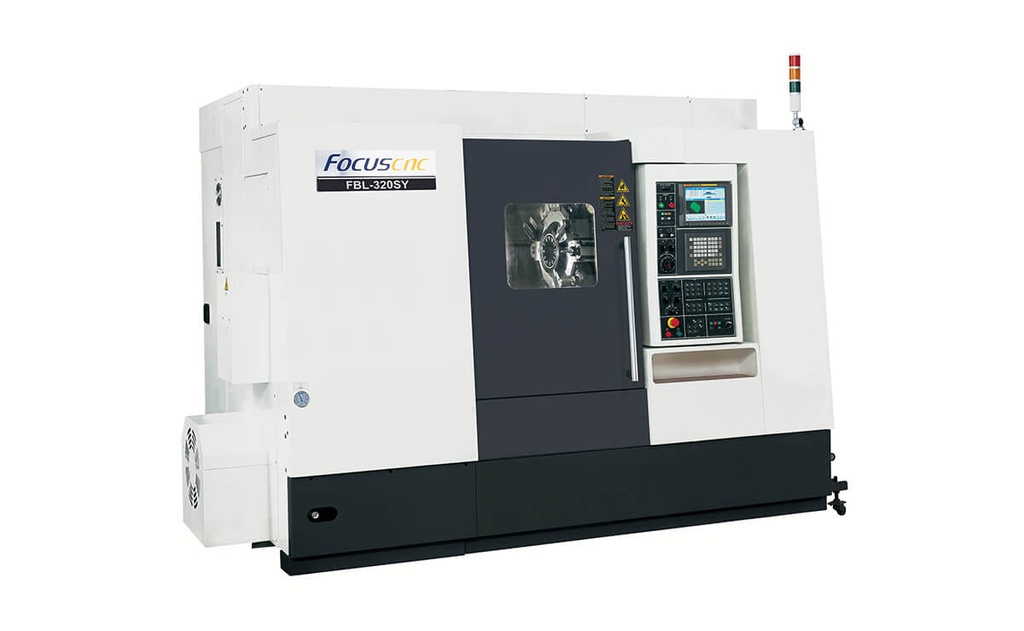

FBL-250Y/ 320Y / SY
CNC Turning-Milling Machine
The tool holder of high-rigidity BMT turret is fixed by 4 bolts and the positioning keys. It delivers the stable cutting. And the enlarged coupling gears enhances the rigidity and accuracy during the cutting.
The tailstock positioning and quill thrust force of CNC Turnmill Machine can be set up easily at our customized interface of servo tailstock.
The space within the machining zone is maximized to prevent the potential tool interference. It much upgrades the processing flexibility and reduces the possibility of the collision.
| Specifications |
FBL-250Y |
FBL-250SY |
FBL-320Y | FBL-320SY |
|
| Capability
|
|||||
| Swing over bed | mm | 600 |
600 |
600 | 600 |
| Max. cutting diameter | mm | 460 |
460 |
460 | 460 |
| Max. cutting length | mm | 558 |
558 |
548 | 548 |
| Max. bar material diameter (main) | mm |
65 |
65 |
77 | 77 |
| Max. bar material diameter (sub) | mm | 52 | 52 | 52 | 52 |
| Spindle | |||||
| Main spindle speed | rpm | 4500 | 4500 | 3500 | 3500 |
| Main spindle nose
|
ASA |
A2-6 |
A2-6 |
A2-8 | A2-8 |
| Main spindel chuck size
|
inch | 8 |
8 |
10 | 10 |
| Main spindle motor
|
kW |
11/15 |
11/15 |
11/15 | 11/15 |
| Sub spindle speed | rpm | - | 6000 | - | 6000 |
| Sub spindle nose | ASA | - | A2-5 | - | A2-5 |
| Sub spindel chuck size | inch | - | 6 | - | 6 |
| Sub spindle motor | kW | - | 5.5/7.5 | - | 5.5/7.5 |
| Turret | |||||
| Number of tools |
|
12(16) |
12(16) |
12(16) | 12(16) |
| Turning tool size | mm | 25x25 |
25x25 |
25x25 | 25x25 |
| Boring tool size | mm | 40 |
40 |
40 | 40 |
| Travel | |||||
| X axis travel | mm | 310 |
310 |
310 | 310 |
|
Z axis travel
|
mm | 620 |
620 |
620 | 620 |
| Y axis travel | mm | 110 (±55) | 110 (±55) | 110 (±55) | 110 (±55) |
