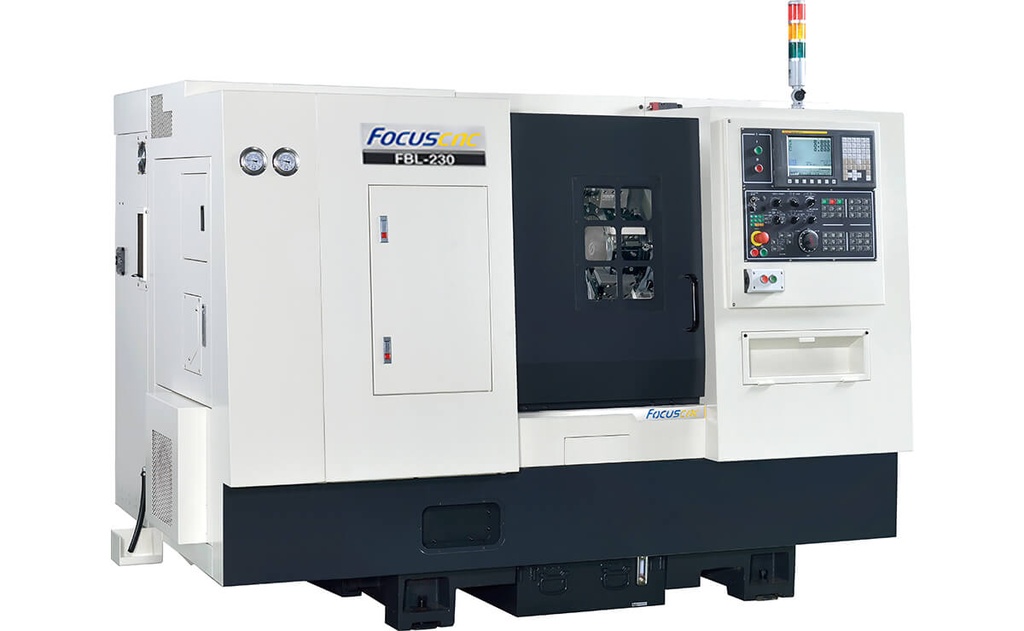

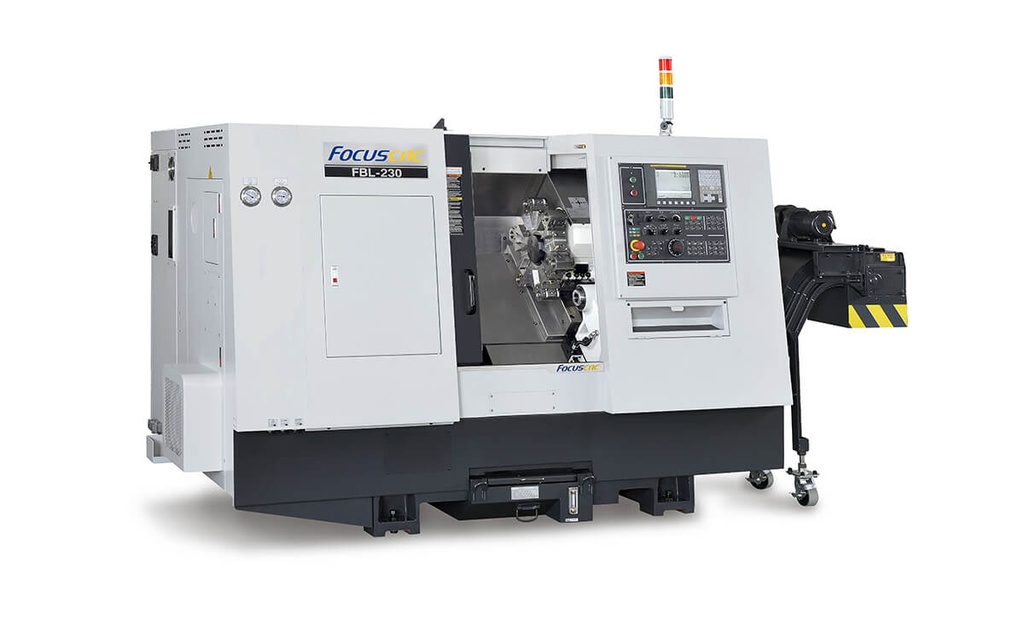

FBL-230/MC/200L
Box Way CNC Lathe
Specializing in the processing of automobile, motorcycle, forging and casting parts. This CNC Box Way Lathe is designed for superior performance of interrupted cutting.
The machine bed is made by one-piece ribbed casting iron to provide the great support and outstanding damping absorption for heavy cutting.
The powerful BMT55 live tooling turret with 3-piece coupling gears, fast hydraulic locking and tool-to-tool change 0.2 second brings you the high production efficiency by the integration of the turning and live tooling.
| Specifications |
FBL-230 | FBL-230MC | FBL-200L | |
| Capability
|
||||
| Swing over bed | mm | 550 |
550 |
470 |
| Max. cutting diameter | mm | 311 |
270 |
280 |
| Max. cutting length | mm | 443 |
362 |
610 |
| Max. bar material diameter | mm | 52 |
52 |
52 |
| Spindle | ||||
| Spindel speed | rpm | 4000 | 4000 | 4000 |
| Spindle nose |
ASA |
A2-6 |
A2-6 |
A2-6 |
| Chuck size | inch | 8 |
8 |
8 |
| Spindle motor | kW |
11/15 |
11/15 |
11/15 |
| Turret | ||||
| Number of tools |
|
10 |
12 | 10 |
| Turning tool size | mm | 25x25 |
25x25 |
25x25 |
| Boring tool size | mm | 40 |
40 |
40 |
| Travel | ||||
| X axis travel | mm | 210 |
210 |
175 |
|
Z axis travel
|
mm | 450 |
450 |
650 |
