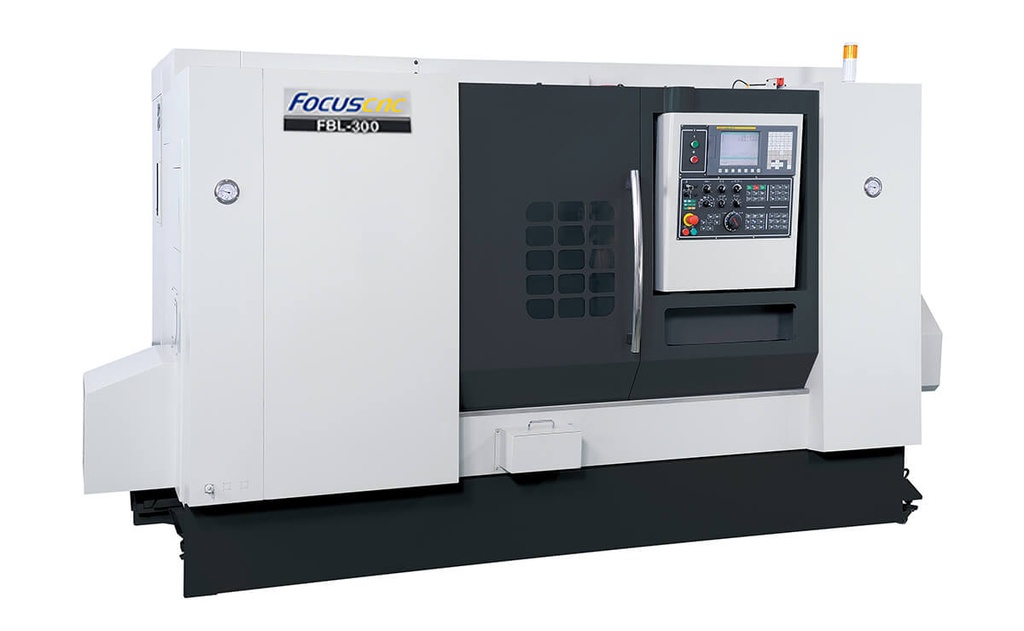

FBL-300/ L/ MC
Box Way CNC Lathe
This model is developed with rigid box way for heavy cutting of big diameter workpieces. The box ways are scraped accurately by professional specialists and designed with lubrication channels to perform the excellent and stable processing accuracy.
The spindle is driven by tooth type timing belt that grips the pulley firmly without belt sliding. Belt transmission delivers low thermal expansion, good heat dissipation and easier maintenance.
The spindle cartridge design provides superior accuracy, lifetime and easier replacement than the non-sleeve design.
| Specifications |
FBL-300 |
FBL-300L |
FBL-300MC |
|
| Capability
|
||||
| Swing over bed | mm | 654 |
654 |
654 |
| Max. cutting diameter | mm | 510 |
510 |
418 |
| Max. cutting length | mm | 594 |
1554 |
555 |
| Max. bar material diameter | mm | 75 |
75 |
75 |
| Spindle | ||||
| Spindel speed | rpm | 2500 | 2500 | 2500 |
| Spindle nose |
ASA |
A2-8 |
A2-8 |
A2-8 |
| Chuck size | inch | 10(12) |
10(12) |
10(12) |
| Spindle motor | kW |
15/18.5 |
15/18.5 |
15/18.5 |
| Turret | ||||
| Number of tools |
|
10(12) |
10(12) |
12 |
| Turning tool size | mm | 25x25 |
25x25 |
25x25 |
| Boring tool size | mm | 40 |
40 |
40 |
| Travel | ||||
| X axis travel | mm | 290 |
290 |
290 |
|
Z axis travel
|
mm | 640 |
1600 |
640 |
